Hobbywing XRotor 2807 1300KV Brushless Motor for 7 Inch FPV Drones

The Hobbywing XRotor 2807 1300KV is a high-performance brushless motor designed for 7-inch FPV drones and long-range FPV builds. Supporting 4S to 6S LiPo batteries, it delivers up to 2818g of maximum thrust and a maximum continuous power rating of 1361W on 6S, making it suitable for demanding FPV applications where strong thrust and reliable motor performance are required.

The motor uses a 12N14P stator and rotor configuration with N52 arc-shaped magnets to provide strong torque and smooth operation. Its low internal resistance helps reduce power losses, while the 220°C high-temperature-resistant H-class enamelled winding wire is designed to handle the heat generated during high-load operation.

The XRotor 2807 features a 5mm shaft with M5 thread, precision dynamic balancing, and a reinforced construction for stable operation at high RPM. The motor comes with 200mm 18AWG silicone wires, making installation easier on larger FPV frames.

With a 59g motor weight and 34 × 20.5mm dimensions, the XRotor 2807 1300KV is a suitable choice for pilots building powerful 7-inch FPV drones for freestyle, cruising, and other high-performance applications.

Key Features

1300KV brushless motor designed for 7-inch FPV drones
Supports 4S–6S LiPo batteries
Up to 2818g maximum thrust
1361W maximum continuous power on 6S
12N14P configuration for smooth and responsive motor operation
N52 arc-shaped magnets for increased torque
0.2mm silicon steel sheets for efficient motor operation
220°C H-class enamelled wire for high-temperature resistance
Multi-strand winding design for improved slot fill
D5 + M5 shaft with 15mm shaft length
Precision dynamic balancing for stable high-RPM operation
Pre-installed 18AWG silicone wires
Recommended for use with the Hobbywing XRotor FPV G2 65A 4-in-1 ESC

Technical Specifications

Specification	Details
Brand	Hobbywing
Series	XRotor
Model	XRotor 2807 1300KV
KV Rating	1300KV
Recommended Battery	4S–6S LiPo
Maximum Thrust	2818g
Maximum Continuous Current	56.7A @ 6S
Maximum Continuous Power	1361W @ 6S
No-Load Current	2A @ 24V
Motor Weight	59g

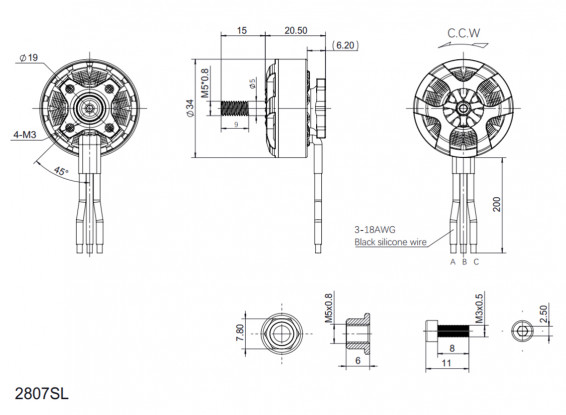

Motor Dimensions	Ø34 × 20.5mm
Stator / Pole	12N14P
Wire	18AWG
Wire Length	200mm
Internal Resistance	53.8mΩ
Shaft	D5 + M5
Shaft Length	15mm
Mounting	Ø19mm, 4 × M3
Winding Insulation	220°C, H-Class
Recommended ESC	XRotor FPV G2 65A 4-in-1
Recommended Propellers	HQ7×3.5×3, HQ7×4×3

Compatibility

The Hobbywing XRotor 2807 1300KV is intended for 7-inch FPV drone builds using 4S–6S LiPo power systems. For the recommended setup, Hobbywing specifies the XRotor FPV G2 65A 4-in-1 ESC and HQ 7-inch propellers.

Package Includes

1 × Hobbywing XRotor 2807 1300KV Brushless Motor
